AlMg4.5Mn / 5083 / 3.3555 Aluminum Plate/Sheet



HOME > > PRODUCTS > > Aluminum > > Aluminum Plate/Sheet > > AlMg4.5Mn / 5083 / 3.3555 Aluminum Plate/Sheet

AlMg4.5Mn / 5083 / 3.3555 Aluminum Plate/Sheet

Aluminum plate is the thickness of 0.2mm to 500mm below, width of 200mm or more, length of less than 16m aluminum material is called aluminum plate or aluminum sheet, 0.2mm or less for aluminum, 200mm width within the row or strip (of course, with the advancement of large equipment, the widest can be 600mm aluminum plate is more).

SEND E-MAIL

Product Details

Company Profile

Inquiry

Overview

Item	Aluminum sheet
Standard	GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
Material	1050,1060,2A14,3003,3103,4032,5454,5754,5056,5082,5086,6061,6060,6082,7075,7475
Size	Thickness	0.2-200mm
	Width	100-2000mm
	Length	2000mm,2440mm,6000mm,or as required.
Quality control	Mill Test Certification is supplied with shipment,Third Part Inspection is acceptable.
Surface	Bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc
Trade conditions
Trade terms	Price term	Ex-Work,FOB,CNF,CFR,etc
	Payment Term	TT,L/C,western Union,etc
MOQ	500Kg
Delivery time	1.The products in stock will delivery immediately received the payment. 2.According to the order quantity,prompt delivery.
Package	Standard export package,such as wooden box or as required.
Application	1)Further making utensil. 2)Solar reflective film 3)The appearance of the building 4)Interior decorating:ceilings,walls,etc. 5)Furniture cabinets 6)Elevator decoraction 7)Signs,nameplate,bags making. 8)Decorated inside and outside the car 9)Household appliances:refrigerators,microwave ovens,audio equipment,etc. 10)The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc.
Container size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM

Chemical Composition

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	Bi : 0.20 – 0.60Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder

Mechanical Properties

Alloy	Temper	UTS (Mpa)		Yield Strength (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A	F	60	–	20	–	23
EN AW-1050 A	O	60	95	20	–	23
EN AW-1070 A	F	60	–	20	–	23
EN AW-1100	O	75	110	–	–	25
EN AW-2011	T4	275	–	125	–	12
EN AW-2011	T6	310	–	230	–	6
EN AW-2014	O	–	250	–	135	10
	T4	370	–	230	–	11
	T6	415	–	370	–	5
EN AW-2024	O	–	250	–	150	10
	T3,T3510,T3511	395	–	290	–	6
	T8,T8510,T8511	455	–	380	–	4
EN AW-3003	F	95	–	35	–	20
EN AW-3003	O	95	135	35	–	20
EN AW-3103	F	95	–	35	–	20
EN AW-3103	O	95	135	35	–	20
EN AW-6101A	T6	200	–	170	–	8
EN AW-6005	T4	180	–	90	–	13
EN AW-6005	T6	270	–	225	–	6
EN AW-6351	O	–	160	–	110	12
	T4	205	–	110	–	12
	T6	290	–	250	–	6
EN AW-6060	T4	120	–	60	14	12
	T5	160	–	120	–	6
	T6	190	–	150	–	6
	T64	180	–	120	–	10
	T66	215	–	160	–	6
EN AW-6061	O	–	150	–	110	14
	T4	180	–	110	–	13
	T6	260	–	240	–	6
EN AW-6063	O	–	130	–	–	16
	T4	130	–	65	–	12
	T5	175	–	130	–	6
	T6	215	–	170	–	6
	T66	245	–	200	–	6
EN AW-6082	O	–	160	–	110	12
	T4	205	–	110	–	12
	T5	270	–	230	–	6
	T6	290	–	250	–	6

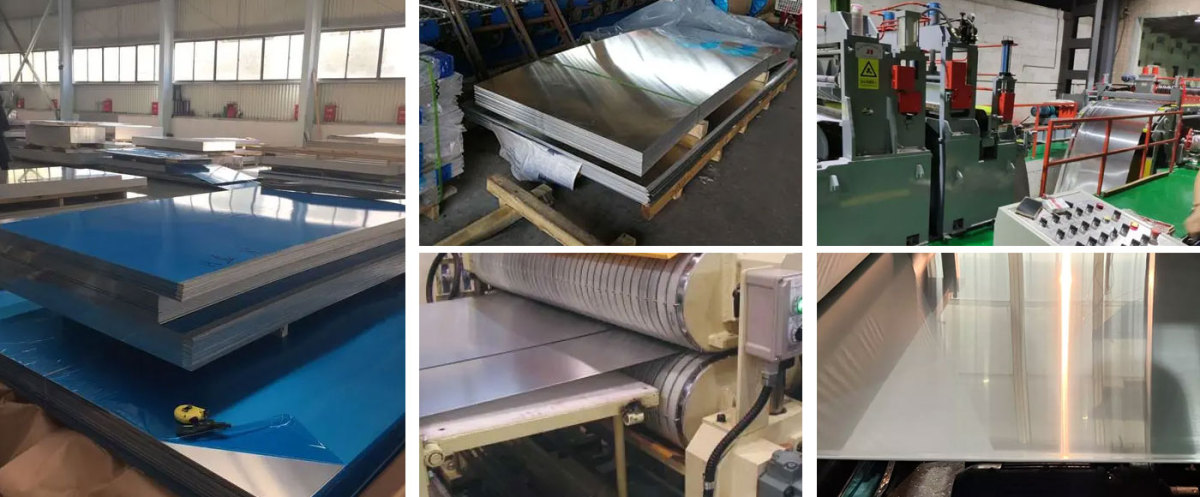

Equipment

About us

Our group has been in the steel industry since 2010 and has been exporting "stainless steel products" since 2012, as a stocker of these materials. It established a foreign trade company…

Stainless sheet metal, coiled stainless steel (flat material), round steel, flat steel, angle iron (long material), seamless welded pipe, square and rectangular pipe profile (pipe material),die steels, etc. constitute the general product range, which has been successfully wholesaled and retailed.

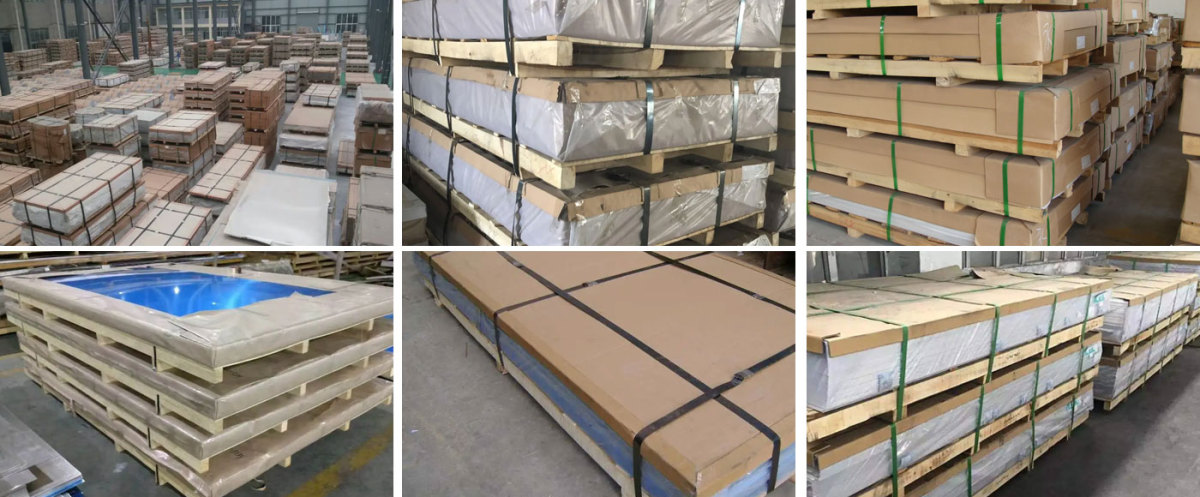

Packaging Shipping

FAQ

Q1 . Can I have a sample order for products ?
A : Yes , we welcome sample order to test and check quality . Mixed samples are acceptable .

Q2 . What about the lead time ?
A : Sample needs 3-5 days

Q3 . Do you have any MOQ limit for products order ?
A : Low MOQ , 1pcs for sample checking is available

Q4 . How do you ship the goods and how long does it take to arrive ?
A : We usually ship by DHL , UPS , Fedex or TNT . It usually takes 3-5 days to arrive . Airline and seashipping also optional For mass products , ship freight is prefered

Q5 . Is it OK to print my logo on products ?
A : Yes , OEM and ODM are available for us

Q6 : How to ensure the quality ?
A Mill Test Certificate is supplied with shipment . If needed , a Third Party Inspection is acceptable
